Clamp & Gasket Kit for Detroit One Box - DRPDD1BK

Clamp and Gasket Kit for Detroit One Box - DD1BK

This aftermarket kit is designed to make the servicing of your Detroit One Box kit as simple as it can be. In this kit, you will find the gaskets and clamps for both DPFs, as well as the bolts and clips that attach the heat shield to the frame of your One Box. This kit is designed to work with the DD13 and DD15 systems. All products are new, and a breakdown of the components are listed below.

For other Detroit One Box kit options, look at VB3007, VB3008, and VB3009.

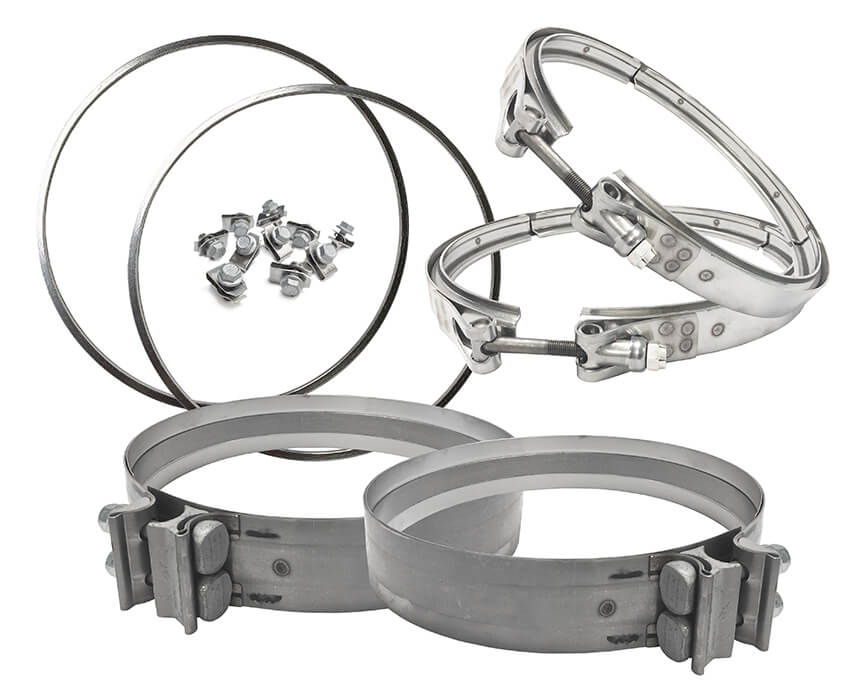

This kit includes:

• (2) A6809950302 Double bolt flat clamp, inside diameter: 10.59"
• (2) A6809950202 V-clamp, nominal inside diameter: 10.5"
• (2) A6804910480 Spiral wound gasket, inside diameter: 9.75"
• (10) Bolt & clip sets for the heat shield
